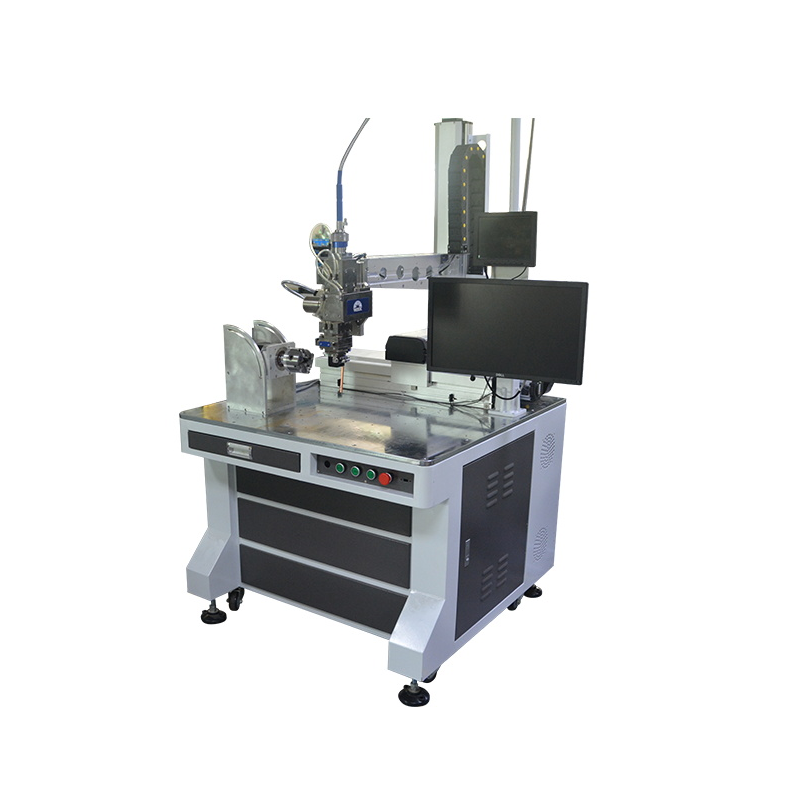

Fiber laser welding machine
The fiber laser welding machine uses a laser beam with a wavelength of 1080nm to radiate the surface of the processed part after expanding, reflecting, and focusing. The surface heat is diffused to the inside by heat conduction, and the width, energy, peak power and repetition of the laser pulse are precisely controlled by digital Parameters such as frequency make the workpiece melt and form a specific molten pool, so as to achieve laser welding of the workpiece and complete precision welding that cannot be achieved by traditional processes.
  • INQUIRY
  • Description
    • The fiber laser welding machine uses a laser beam with a wavelength of 1080nm to radiate the surface of the processed part after expanding, reflecting, and focusing. The surface heat is diffused to the inside by heat conduction, and the width, energy, peak power and repetition of the laser pulse are precisely controlled by digital Parameters such as frequency make the workpiece melt and form a specific molten pool, so as to achieve laser welding of the workpiece and complete precision welding that cannot be achieved by traditional processes.

    Sample show

    Technical characteristics
    Laser welding can achieve high laser power for spot welding, butt welding, overlay welding, and seal welding on thin-walled materials and precision parts. The weld has a high aspect ratio, small heat affected area, small deformation, and fast welding speed. The weld quality is high, flat and beautiful, no pores. The toughness of the material after welding is at least equivalent to the ergonomic design of the parent material. The LCD screen display and centralized key operation are simpler. The four-dimensional ball screw workbench adopts an imported servo control system. Optional rotary work is available. Taiwan, can realize spot welding, linear welding, circumferential welding and other automatic welding, a wide range of applications, high accuracy and fast speed. The current waveform can be adjusted arbitrarily, and different waveforms can be set according to the different welding materials, so that the welding parameters and welding requirements are matched to achieve the best welding effect.

    Application area
    Suitable for welding stainless steel, gold, silver, alloy, steel, diamond and other materials, or welding of dissimilar materials, widely used in mobile phone batteries, sensors, medical equipment, craft gifts, clocks, electronic components, sensors, precision machinery, communications and other industries .

    Product parameters
    project name Technical Parameters
    Model CX-GW200/300/500/800/1000/1500/2000
    Laser power 200W/300W/500W/800W/1000W/1500W/2000W
    Laser wavelength 1080nm
    Laser welding depth ≤3mm（Depending on the material）
    Fiber core 100
    Laser welding frequency 20KHz
    Spot size adjustable range 0.3-3.0mm
    Total power ≤14KW
    electricity demand 200V/380V/三相/50Hz/60A
    Maximum load of standard workbench ≤100Kg
    Workbench stroke 200×300mm
    Table repeatability ±0.01mm
    Table positioning accuracy ±0.02mm
    Aiming and positioning Red light, CCD monitoring system
    cooling method Water cooling
    Host dimensions(L×W×H) 1200×900x1500mm
