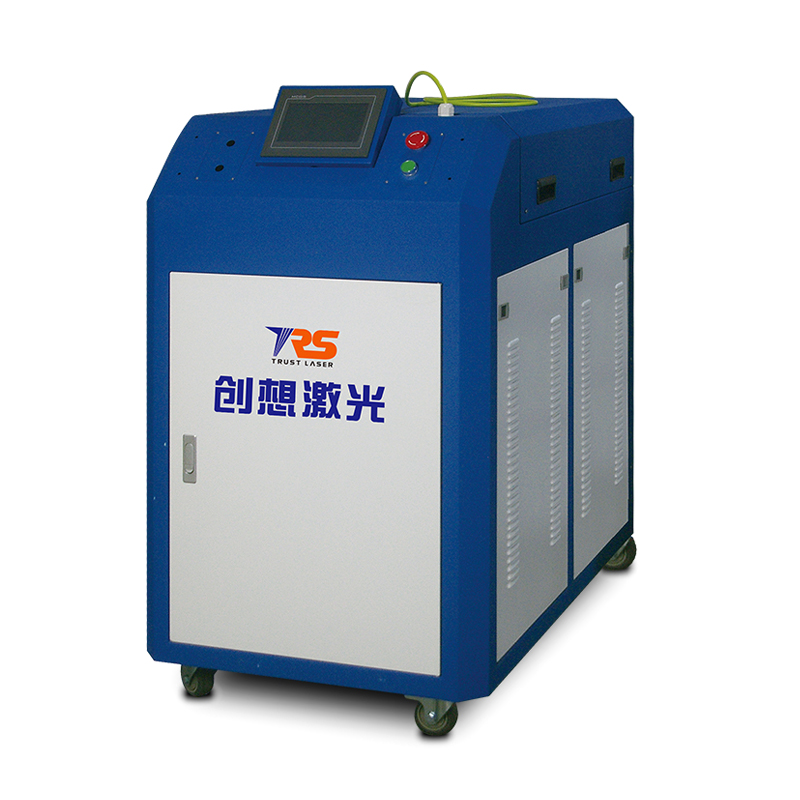

- Optical fiber transmission laser welding machine
Optical fiber transmission laser welding machine is a laser welding equipment that couples a high-energy laser beam into an optical fiber, collimates it into collimated light through a collimator, and then focuses on the workpiece to perform welding after long distance transmission. For the parts that are difficult to access by welding, non-contact welding with flexible transmission is implemented, which has greater flexibility. The laser beam can achieve time and energy splitting, and it can process multiple beams simultaneously, providing conditions for more precise welding.
Optical fiber transmission laser welding machine is a laser welding equipment that couples a high-energy laser beam into an optical fiber, collimates it into collimated light through a collimator, and then focuses on the workpiece to perform welding after long distance transmission.
The battery laser welding machine is a laser welding device that couples a high-energy laser beam into an optical fiber, collimates it into parallel light through a collimator, and then focuses on the workpiece to perform welding after long-distance transmission. For the parts that are difficult to access by welding, non-contact welding with flexible transmission is implemented, which has greater flexibility. The laser beam can achieve time and energy splitting, and it can process multiple beams at the same time, providing conditions for more precise welding.
Sample show
Technical characteristics
Battery laser welding machine main features:
1. Non-contact processing is adopted, the processing effect is fine, stable, and meets environmental protection requirements.
2. The process is simple, the cycle is short, and the next process can be performed immediately after the processing is completed.
3. The use of advanced laser has a long life, stable operation, higher welding efficiency and maintenance-free.
4, using professional control software, stable operation, simple operation, easy to use.
5. High reliability, fast speed, high precision, high power, strong and durable, and strong versatility.
6. The model has a compact structure, a modular design, and is easy to expand. It can realize spot welding, tailor welding, and overlap welding.
7. There are two methods of continuous and pulse welding, which can be freely selected according to the actual situation.
8, can be customized according to customer requirements for automatic matching, improve welding efficiency.
Application area
Battery laser welding machine applications: mobile phone batteries, power batteries, poles, poles, parallel, series, etc. welding.
Product parameters
The battery laser welding machine is a laser welding device that couples a high-energy laser beam into an optical fiber, collimates it into parallel light through a collimator, and then focuses on the workpiece to perform welding after long-distance transmission. For the parts that are difficult to access by welding, non-contact welding with flexible transmission is implemented, which has greater flexibility. The laser beam can achieve time and energy splitting, and it can process multiple beams at the same time, providing conditions for more precise welding.
Sample show
Technical characteristics
Battery laser welding machine main features:
1. Non-contact processing is adopted, the processing effect is fine, stable, and meets environmental protection requirements.
2. The process is simple, the cycle is short, and the next process can be performed immediately after the processing is completed.
3. The use of advanced laser has a long life, stable operation, higher welding efficiency and maintenance-free.
4, using professional control software, stable operation, simple operation, easy to use.
5. High reliability, fast speed, high precision, high power, strong and durable, and strong versatility.
6. The model has a compact structure, a modular design, and is easy to expand. It can realize spot welding, tailor welding, and overlap welding.
7. There are two methods of continuous and pulse welding, which can be freely selected according to the actual situation.
8, can be customized according to customer requirements for automatic matching, improve welding efficiency.
Application area
Battery laser welding machine applications: mobile phone batteries, power batteries, poles, poles, parallel, series, etc. welding.
Product parameters
| Project name | Technical Parameters |
|---|---|
| Model | CX-WF200、400、600 |
| Laser wavelength | 1064nm |
| Laser working substance | Nd:YAG |
| Maximum single pulse energy | 50J |
| Pulse Width | ≤20ms |
| Pulse frequency | ≤80Hz |
| 光纤芯径 | 0.4mm/0.6mm |
| Minimum welding spot diameter | 0.2mm |
| Rated laser power | 300W |
| Total power | 12KW |
| Fiber output number | Possibility of optical splitting and time splitting, standard 1 fiber, up to 6 channels |
| cooling system | Water cooling |
| powered by | 380V±10%/50Hz |
| Dimensions(L×W×H) | 1200×600×1100mm |
| weight | 300kg |
