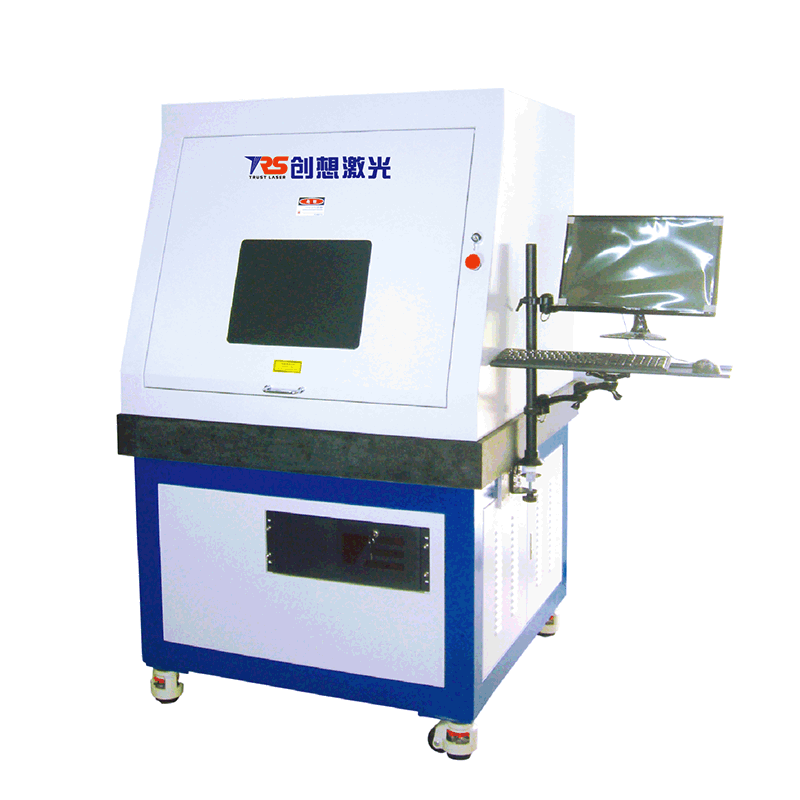

- ITO film laser etching machine
ITO (Indium Tin Oxides)-nanometer indium tin metal oxide, usually called indium tin oxide. Because of its good conductivity, transparency and anti-electron radiation performance, it is sprayed on plastic and glass to form a transparent conductive film of indium tin oxide semiconductor. Widely used in mobile phones, car navigation tablets, various resistors with special high transmission requirements
ITO (Indium Tin Oxides)-nanometer indium tin metal oxide, usually called indium tin oxide. Because of its good conductivity, transparency and anti-electron radiation performance, it is sprayed on plastic and glass to form a transparent conductive film of indium tin oxide semiconductor. It is widely used in mobile phones, car navigation tablet computers, various types of resistors with special high transmission requirements, capacitive touch screens, and solar energy industries. Our company has developed a series of ITO laser etching machines for market needs, and laser-etched gas strips on the surface conductive film to meet the needs of different users. This product uses imported laser, German high-precision digital galvanometer and high-precision CNC workbench. The whole machine adopts an integrated design and is equipped with an integrated high-precision laser, which has a compact structure, a small footprint, stable performance, and is basically maintenance-free. Imported motion control software is used, and the entire operation process is controlled by computer input and output, and the operation is simple and convenient. Compared with the wet acid-alkali etching line equipment currently used in the market, the process is very simple and does not require pure water, acid-base solution, cleaning and other processes, so the performance is more stable, the efficiency is higher, and the cost performance is better. Improve the stable, efficient, environmentally friendly, high pass dry etching process for the touch screen industry and completely replace the traditional wet etching process.
Sample show
Technical characteristics
· ITO laser etcher has the following advantages: Laser etcher has high accuracy and high speed of repeated positioning;
· The processing edges are neat and smooth, and the consistency is excellent.
· The process is simple, reducing the traditional 4 processes to one process with full automatic control. Non-contact processing, one-step etching is in place, the qualification rate of the product is greatly improved, and mass production can be achieved. No need to use any chemical solvents, no pollution to the clean room environment;
· Laser engraving and one-time investment, maintenance-free for life, strong quality consistency, greatly reducing the technical reliance on employees of traditional etching technology. Laser engraving machine has stable performance and low maintenance, and the average trouble-free use time can reach more than 50,000 hours , Low power consumption.
· Only one operator is required. Chemical etching machine consumes a large amount of electricity, water and chemical corrosion, requires frequent maintenance, and has a large workload of personnel;
· Laser engraving machine can shorten the process and reduce the occurrence of defective items (etching white spots, water mist, residual alkali, and roller printing) to improve production yield.
· The laser engraving mechanism has stable processing and simple operation (reduction of poor etching: high resistance, low resistance, and poor insulation). Compared with traditional chemical etching, the software edits the circuit, so the sample preparation process is simple, fast and low cost ; Product qualification rate is higher than 95%.
· Laser engraving machine solves the high-efficiency, high-quality technical and process problems of laser etching of glass substrates.
Application area
It can be used for precision adjustment of the resistance of power supplies, electronic components, sensors, thick film and thin film circuits.
Product parameters
Sample show
Technical characteristics
· ITO laser etcher has the following advantages: Laser etcher has high accuracy and high speed of repeated positioning;
· The processing edges are neat and smooth, and the consistency is excellent.
· The process is simple, reducing the traditional 4 processes to one process with full automatic control. Non-contact processing, one-step etching is in place, the qualification rate of the product is greatly improved, and mass production can be achieved. No need to use any chemical solvents, no pollution to the clean room environment;
· Laser engraving and one-time investment, maintenance-free for life, strong quality consistency, greatly reducing the technical reliance on employees of traditional etching technology. Laser engraving machine has stable performance and low maintenance, and the average trouble-free use time can reach more than 50,000 hours , Low power consumption.
· Only one operator is required. Chemical etching machine consumes a large amount of electricity, water and chemical corrosion, requires frequent maintenance, and has a large workload of personnel;
· Laser engraving machine can shorten the process and reduce the occurrence of defective items (etching white spots, water mist, residual alkali, and roller printing) to improve production yield.
· The laser engraving mechanism has stable processing and simple operation (reduction of poor etching: high resistance, low resistance, and poor insulation). Compared with traditional chemical etching, the software edits the circuit, so the sample preparation process is simple, fast and low cost ; Product qualification rate is higher than 95%.
· Laser engraving machine solves the high-efficiency, high-quality technical and process problems of laser etching of glass substrates.
Application area
It can be used for precision adjustment of the resistance of power supplies, electronic components, sensors, thick film and thin film circuits.
Product parameters
| project name | Technical Parameters |
|---|---|
| machine type | CX-SK30 |
| Laser wavelength | 355nm/1064nm |
| Laser | Custom laser |
| Laser power | 3W/5W/8W｜20W/30W |
| Way of working | Long stitching |
| The scope of work | 500mm×500mm（Standard） |
| Line speed | 3000mm/s |
| Minimum line width | 0.02mm |
| RZ Rough value | ≤0.02mm |
| Repeat accuracy | ±0.01mm |
| Minimum focus spot | 0.02mm |
| Targeting | automatic |
| Machine power supply | 2Kw/AC220V/50Hz |
| cooling method | Air-cooled |
| Overall size(L×W×H) | 1100×1100×1900mm |
