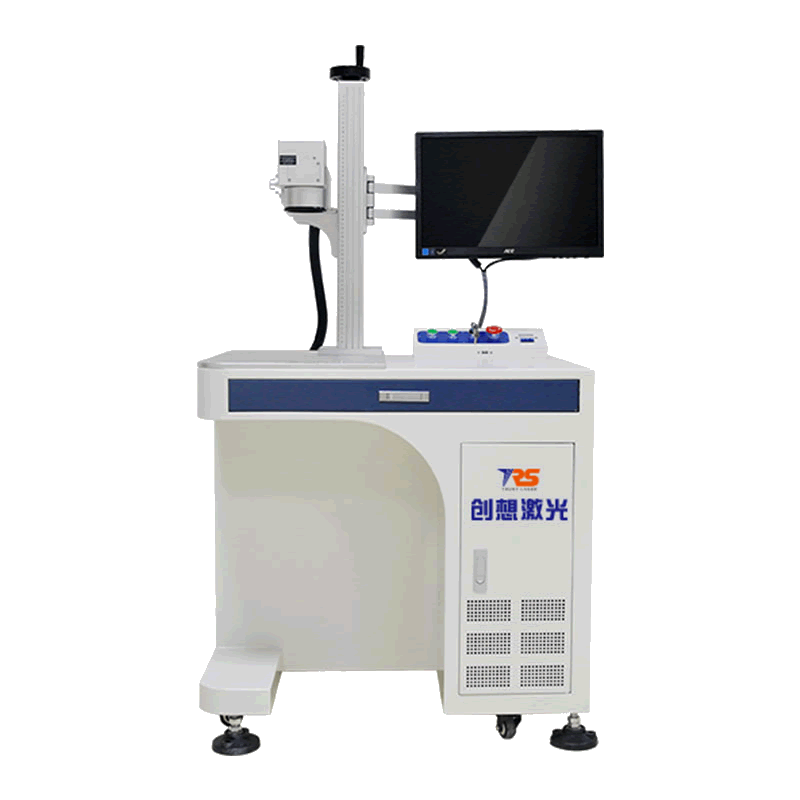

- Laser marking machine for mobile phone tempered glass film
There are more and more colors and patterns on the market for the electroplating process of tempered glass mobile phone films, including silver, rose gold, etc., as well as special custom-made film panels. But the tough and brittle nature of tempered glass, the finished product is generally no longer a secondary processing, then how can we meet the needs of this type of processing? The third generation laser technology of the idea fiber laser marking machine uses imported fiber laser
There are more and more colors and patterns on the market for the electroplating process of tempered glass mobile phone films, including silver, rose gold, etc., as well as special custom-made film panels. But the tough and brittle nature of tempered glass, the finished product is generally no longer a secondary processing, then how can we meet the needs of this type of processing? The third generation of laser technology of the fiber optic laser marking machine uses imported fiber lasers, high-speed scanning galvanometer system, stable output power, good optical mode, good beam quality, precise computer control, high efficiency, low processing cost, zero consumables , Zero contact, stable production, etc., can meet the industrial continuous work, but also just realize the processing of tempered glass mobile phone film.
Sample show
Technical characteristics
· It is used in areas with high requirements on depth, smoothness and fineness, such as clocks and watches, mold industry, bitmap marking, etc.
· Fiber laser marking machine has better beam quality than traditional solid laser marking machine. It is the output of the fundamental mode (TEMOO) and the focus spot diameter is 10um.
· The divergence angle is 1/4 of the semiconductor pump laser.
· Particularly suitable for precision and fine marking.
Suitable material
Metals (including rare metals), engineering plastics, plating materials, coating materials, rubber, epoxy resin, ceramics and other materials.
Application area
Widely used in mobile phone keys, plastic transparent keys, electronic components, integrated circuits, electrical appliances, sanitary ware, hardware tool accessories, knives, glasses and watches, jewelry, auto parts, luggage buckles, crafts, cookware and stainless steel products industry.
Product parameters
Sample show
Technical characteristics
· It is used in areas with high requirements on depth, smoothness and fineness, such as clocks and watches, mold industry, bitmap marking, etc.
· Fiber laser marking machine has better beam quality than traditional solid laser marking machine. It is the output of the fundamental mode (TEMOO) and the focus spot diameter is 10um.
· The divergence angle is 1/4 of the semiconductor pump laser.
· Particularly suitable for precision and fine marking.
Suitable material
Metals (including rare metals), engineering plastics, plating materials, coating materials, rubber, epoxy resin, ceramics and other materials.
Application area
Widely used in mobile phone keys, plastic transparent keys, electronic components, integrated circuits, electrical appliances, sanitary ware, hardware tool accessories, knives, glasses and watches, jewelry, auto parts, luggage buckles, crafts, cookware and stainless steel products industry.
Product parameters
| project name | Technical Parameters |
|---|---|
| model | CX-FM10/20/30/50 |
| power | 10W/20W/30W/50W |
| Laser wavelength | 1064nm |
| repeat frequency | 0-100KHZ |
| Beam quality | <2 |
| Marking range | 110mmX110mm(Optional）160mmX160mm、200mmX200mm、300mmX300mm |
| Carving depth | ≤0.4mm |
| Carving line speed | ≤7000mm/s |
| Minimum line width | 0.05mm |
| Smallest character | 0.15mm |
| Repeat accuracy | ±0.001mm |
| Power supply | 220V/50Hz |
| Machine power consumption | 500W |
| Dimensions(L×W×H) | 800mm×650mm×1500mm |
| operating system | Win98/Win2000/WinXP |
| cooling method | Built-in air cooling |
| Control interface | standard USB |
| file format | WINDOWS All fonts / types of the operating system font |
| Laser type | Pulse or continuous |
